Titan 900 cfm Stoker Fan

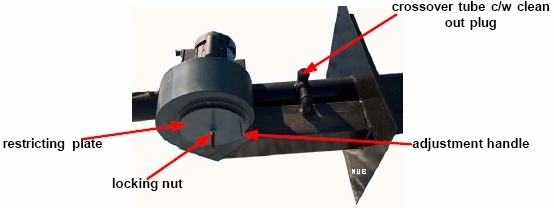

Titan boilers may have two combustion blowers. The main blower is located on the auger tube and blows air along the tube and up through the slots on the burn head. There is also a cross over air tube that takes a small amount of this air and blows it into the auger tube to maintain positive air pressure in the tube. To adjust the air flow into the burn chamber each blower has an adjustable restrictor plate on the air intake of the blower.

The optional over fire air blower is located on the back of the unit and will inject air into the fire box near the top of the flame to give a more complete burn when the main blower can not provide adequate air for combustion. This is normally when the air flow of the main blower as been turned down to stop high air flow from blowing lighter unburned fuel off the burn head (such as wood pellets or other pelletized fuel). It can also improve the burning of coal in the event of excessive clinkers.


Titan 900 cfm Stoker Fan
	Titan boilers may have two combustion blowers. The main blower is located on the auger tube and blows air along the tube and up through the slots on the burn head. There is also a cross over air tube that takes a small amount of this air and blows it into the auger tube to maintain positive air pressure in the tube. To adjust the air flow into the burn chamber each blower has an adjustable restrictor plate on the air intake of the blower. The optional over fire air blower is located on the back of the unit and will inject air into the fire box near the top of the flame to give a more complete burn when the main blower can not provide adequate air for combustion. This is normally when the air flow of the main blower as been turned down to stop high air flow from blowing lighter unburned fuel off the burn head (such as wood pellets or other pelletized fuel). It can also improve the burning of coal in the event of excessive clinkers.
