XXV Exhaust Clearances Page

(If you are serious about this stove please download and read the complete manual to determine whether the stove is actually right for you.)

XXV Installation and Operation Manual - PDF  (1785 kb)

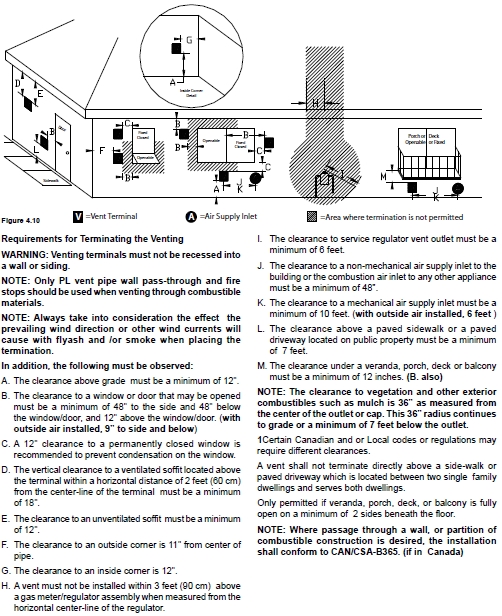

Requirements for Terminating the Venting
WARNING: Venting terminals must not be recessed
into a wall or siding.
NOTE: Only the Harman Direct Vent Wall Pass through
(part # 1-00-677077) or PL listed vent pipe
wall pass-throughs and fire stops should be used
when venting through combustible materials.
NOTE: Always take into consideration the effects of the prevailing wind direction or other wind currents that may cause fly ash and/or smoke when placing the termination vent.
In addition, the following must be observed:
A. The clearance above grade must be a minimum of 18".
B. The clearance to a window or door that may be opened must be a minimum of 48" to the side, 48" below the window/door, and 12" above the window / door.
( with outside air installed, 18? )
C. A 12" clearance to a permanently closed window is recommended to prevent condensation on the window.
D. The vertical clearance to a ventilated soffit located above the terminal within a horizontal distance of 2 feet (60 cm) from the center-line of the terminal must be a minimum of 18".
E. The clearance to an unventilated soffit must be a minimum of 12".
F. The clearance to an outside corner is 11" from center of pipe.
G. The clearance to an inside corner is 12".
H. A vent must not be installed within 3 feet
(90 cm) above a gas meter/regulator assembly
when measured from the horizontal center-line of
the regulator.

I. The clearance to service regulator vent outlet
must be a minimum of 6 feet.
J. The clearance to a non-mechanical air supply
inlet to the building or the combustion air inlet to any
other appliance must be a minimum of 48?.
K. The clearance to a mechanical air supply
inlet must be a minimum of 10 feet.
(with outside air installed, 6 feet )
L. The clearance above a paved sidewalk or a
paved driveway located on public property must be
a minimum of 7 feet.
M. The clearance under a veranda, porch, deck
or balcony must be a minimum of 12 inches.
NOTE: The clearance to vegetation and other
exterior combustibles such as mulch is 36? as measured
from the center of the outlet or cap. This 36? radius continues to grade or a minimum of 7 feet below the outlet.
Certain Canadian and or Local codes or regulations
may require different clearances.
A vent shall not terminate directly above a side-walk or paved driveway which is located between two single family dwellings and serves both dwellings.
Only permitted if veranda, porch, deck, or balcony
is fully open on a minimum of 2 sides beneath
NOTE: Where passage through a wall, or
partition of combustible construction is desired,
the installation shall conform to CAN/CSA-B365.
(if in Canada)
